Lay-Z-spa Hydro jet heating Element

Description

Lay-Z-Spa Heating Element – 220V 2kW (Upgraded Part) | With Seal Kit + Video Guide

Fix Tripping, No Heating, and Rod Failures – Upgraded Genuine Replacement
This brand new 220V 2kW Lay-Z-Spa Hydro Jet Heating Element is an upgraded part, specially designed for post-2021 four-pipe HydroJet models. It includes a full seal kit, an installation video, and reinforced internal clamps to prevent rod push-outs, the previous version would push out as far to burn a hole in the outer case. The new clamps prevent this. Other companies are stating that the clamps stop rod push-outs. This is incorrect. rods will still push out if your water becomes aggressive. They just will not burn the outer case.

✅ Key phrase: Lay-Z-Spa Hydro Jet Heating Element

---

Product Overview

• 220V | 2kW | 4-element design

• Upgraded part with anti-push-out clamps. The part now includes new clamps designed to prevent the heater rods from pushing out and damaging the outer case. Rod push-outs occur due to poor chemical balances in the water.

• Supplied with a complete new seal kit

• Includes step-by-step installation video

• Genuine replacement for post-2021 4-pipe HydroJet models

• Can be retrofitted to some older “egg-style” HydroJet units – contact us to check fit

---

What This Fixes

• ❌ Fixes black flakes entering your spa water. (Caused by water imbalances) This model has no coating, which eliminates the black flakes issue.

• ❌ RCD or fuse tripping

• ❌ Sudden shutoffs

• ❌ E02 error in some cases

• ❌ Rod push-outs (now case burns prevented)

Tripping or leaks? Internal corrosion or worn rods are common. This is due to poor water management.

---

⚠️ Chemical Warning & Warranty Note

High copper levels (from algaecides) and aggressive water chemistry can lead to pitting rod push-outs and corrosion, which may void your warranty. Keep your spa water balanced and regularly tested.

---

Easy DIY Installation (Approx. 30 Minutes)

Designed for confident DIYers, this heating element installs in under 30 minutes.

Tools Required:

• Phillips screwdriver

• Pliers

• Marker for labelling wires

Installation steps:

1. Unplug the spa and remove the top cover.

2. Remove the circuit board cover.

3. Gently pull out the board for access and label the four wires (1–4).

4. Remove all screws on the heater front and rear plates.

5. Slide out the old element.

6. Install the new upgraded element with the included seals.

7. Reattach the plates and wires.

8. Replace all covers and test the spa.

An installation video is included with every purchase for guided help.
Plus, full support is available if needed.

---

What’s Included

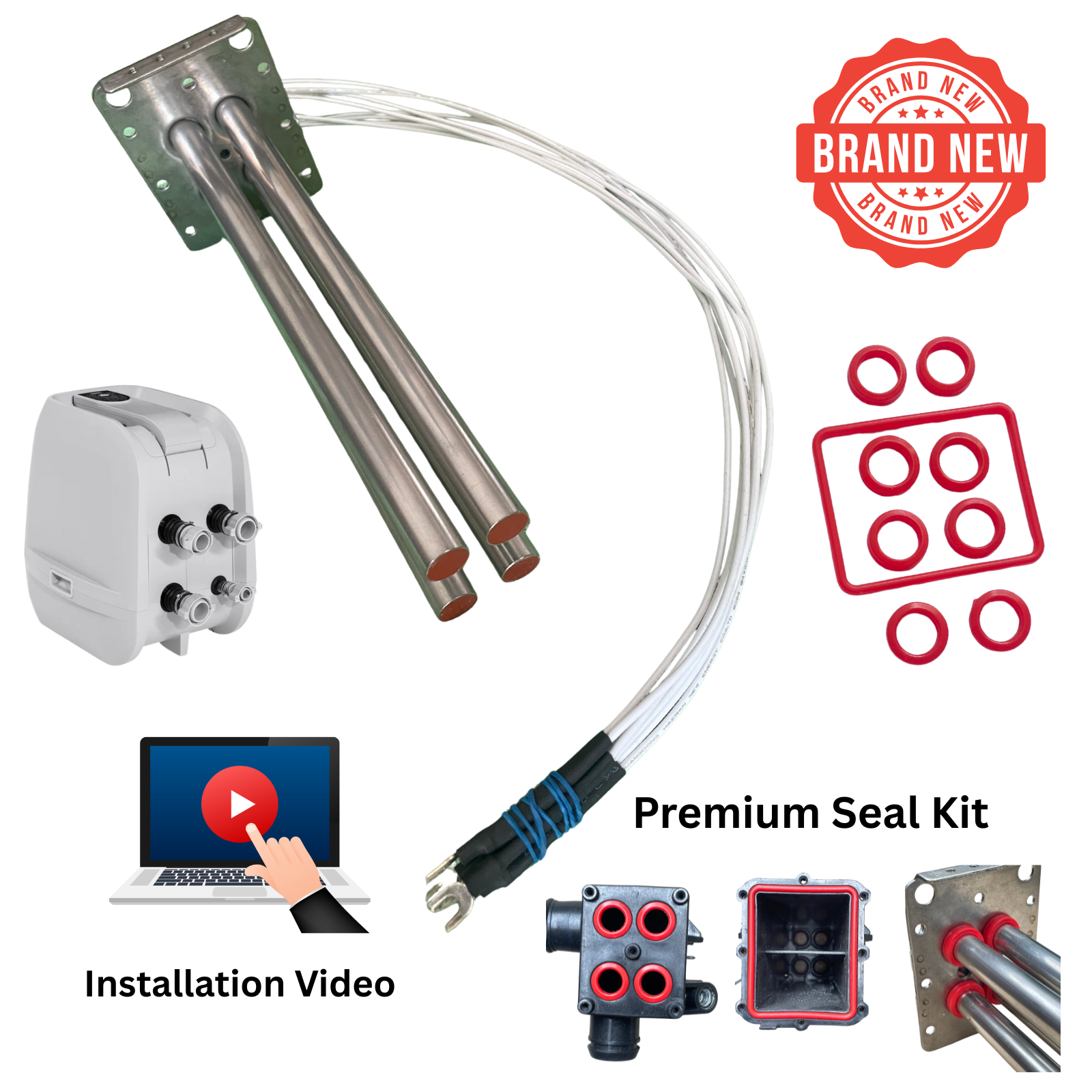

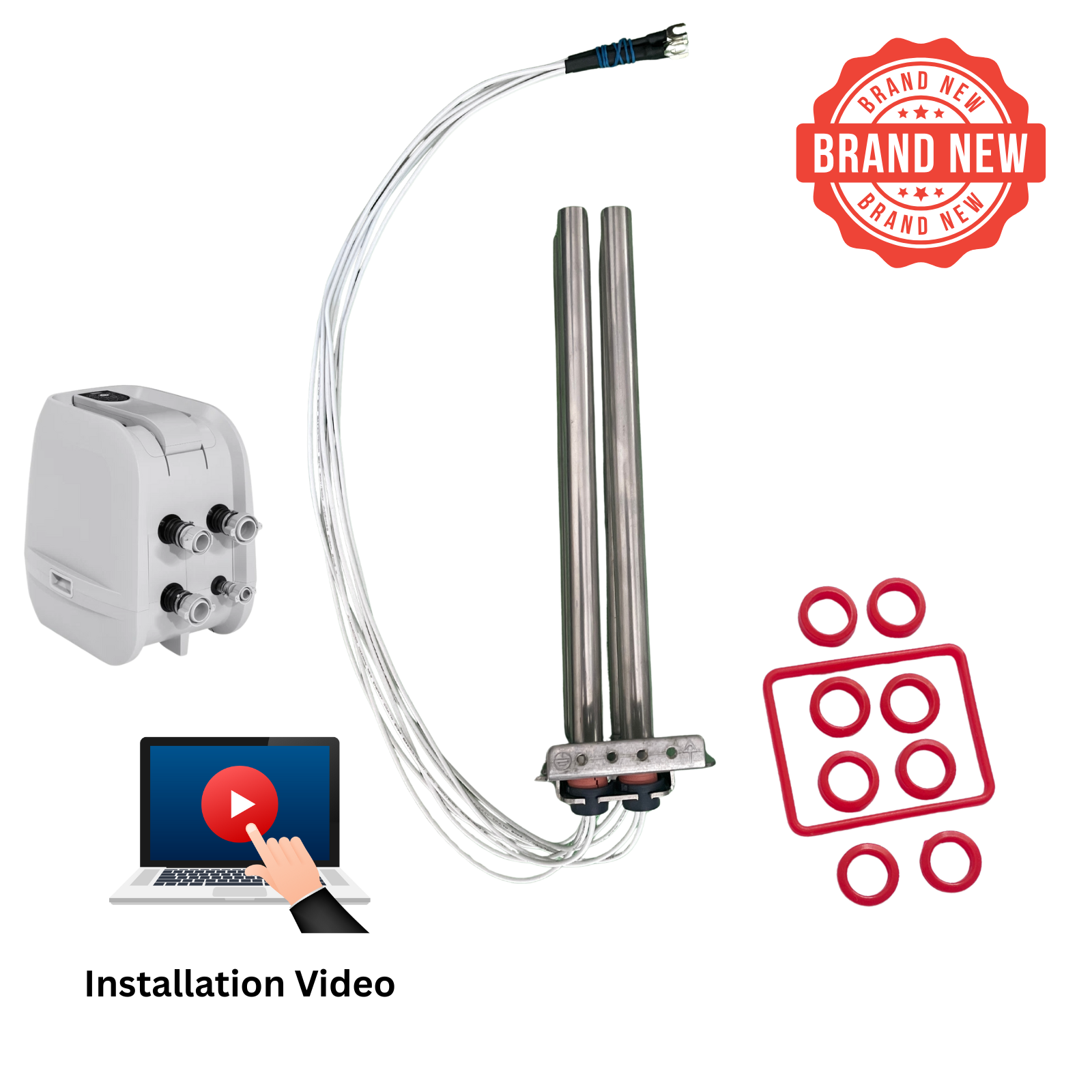

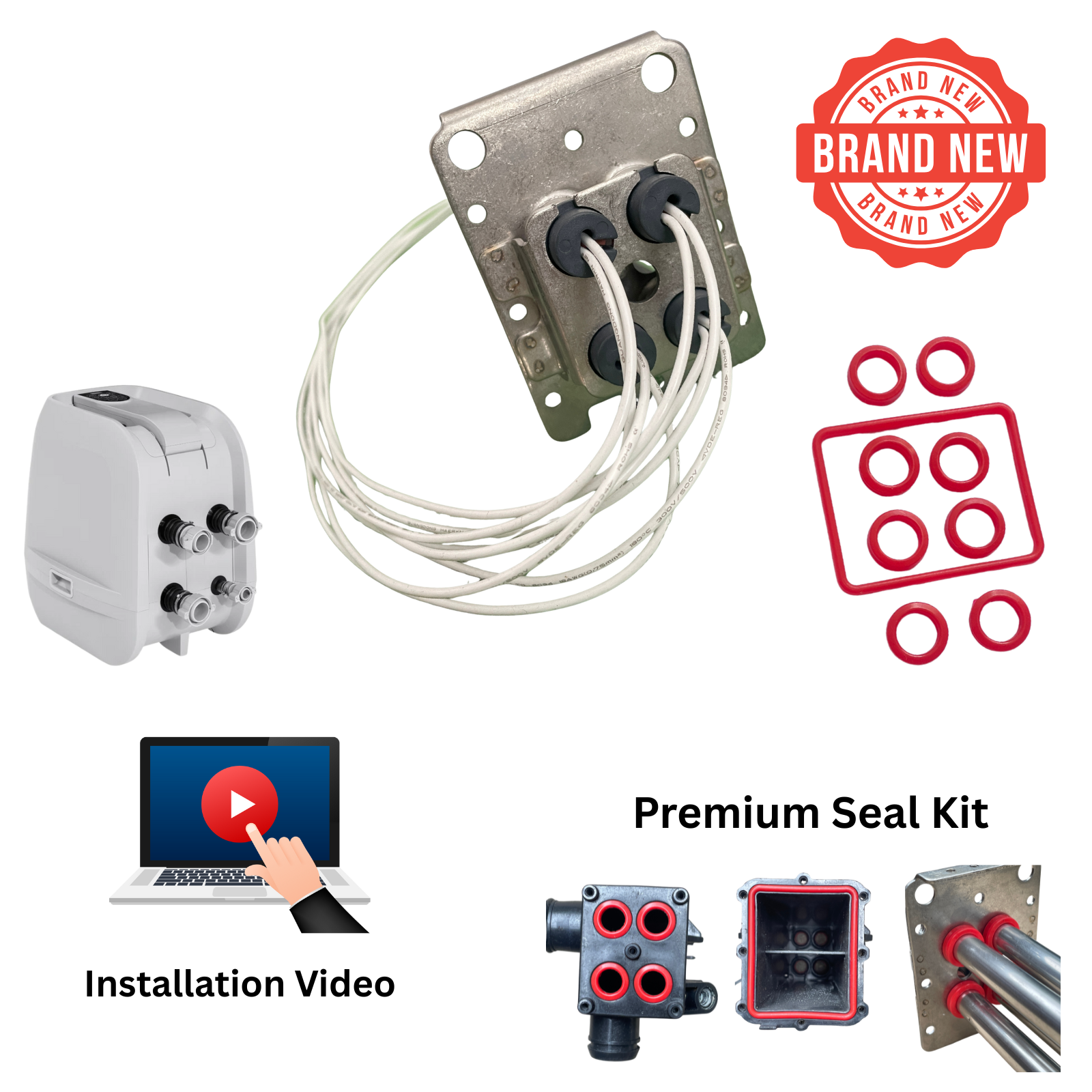

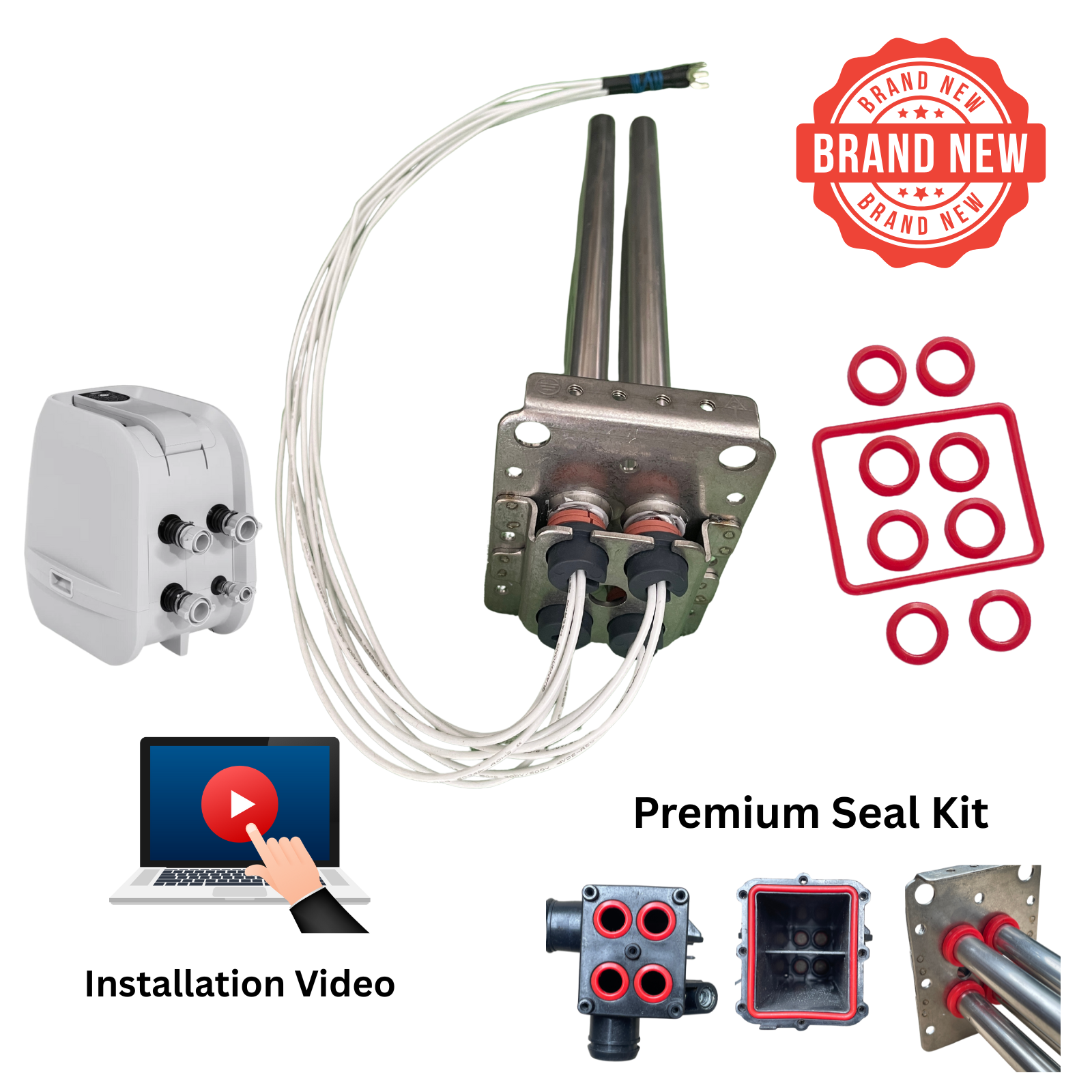

• 1x Upgraded Lay-Z-Spa Hydro Jet Heating Element (220V, 2kW, 4-element)

• 1x New Seal Kit

• 1x Installation video access

• After-sales support & guidance

---

Compatibility Information

This heater assembly is designed for use only with the specific models listed below, and your unit must also have a visible reset button as shown in the product images.

Before purchasing, please check the data label located on the side of your pump unit to confirm compatibility. If you are unsure whether this part is suitable for your model, contact us and we’ll be happy to assist.

Compatible Models:
S200101 / S200102 / S200103 / S200104
S200201 / S200202 / S200203 / S200204

Electrical Rating:
220–240V AC | 50–60Hz

⚠️ Important: Although this heater may look similar to 110–120V versions, it is not electrically interchangeable. Using this part on the wrong voltage supply can cause serious damage to your equipment and may present a safety risk.

If you are in any doubt, please get in touch before ordering — we’re happy to help you confirm the correct part.

---

Delivery & Support

• Next working day delivery (UK) if ordered before 1 pm

• Worldwide shipping available

• UK & Northern Ireland nationwide collection and repair service

• Expert help and video assistance included with every purchase

---

Why Buy from LayZRepair?

We stock only brand new, genuine, and upgraded Lay-Z-Spa parts, never pulled from old machines. This heater includes clamp reinforcements to avoid common rod push-out failures — a problem not addressed in standard replacements. Our goal is to help you fix your spa right the first time, with full support, fast shipping, and honest service.
